Q-CHECKER
Q-Checker is an advanced CAD model analysis and validation tool. This software is designed to automate the verification of models and drawings, ensuring that projects meet quality standards and requirements. It allows for the detection of errors and inconsistencies that may arise during modeling, improving the reliability and accuracy of projects.
Q-Checker performs a detailed and automated analysis of 3D models and 2D drawings. Using configurable criteria, the software verifies elements within the model, such as external references, part connections, and discrepancies between 3D data and 2D drawings. Additionally, Q-Checker is compatible with different modeling methodologies and can be used in projects with or without the Skeleton Method.
Key Benefits:
- Identification of Common Errors:
- Q-Checker detects modeling errors such as broken part connections, unassociated external references, and other issues that may go unnoticed, ensuring a more robust and failure-free project.
- Verification of Consistency Between 3D and 2D:
- The software compares 3D data with 2D drawings, identifying discrepancies and ensuring that information is correctly transferred to production.
- Customized Analysis:
- Verification criteria can be adjusted according to the specific needs of each project, making the validation process more flexible and adaptable to different standards and requirements.
- Verification criteria can be adjusted according to the specific needs of each project, making the validation process more flexible and adaptable to different standards and requirements.
- Enhanced Project Quality:
- Using Q-Checker improves overall project quality, reducing the risk of errors in the manufacturing process and ensuring that the final product aligns with the planned specifications.
- Using Q-Checker improves overall project quality, reducing the risk of errors in the manufacturing process and ensuring that the final product aligns with the planned specifications.

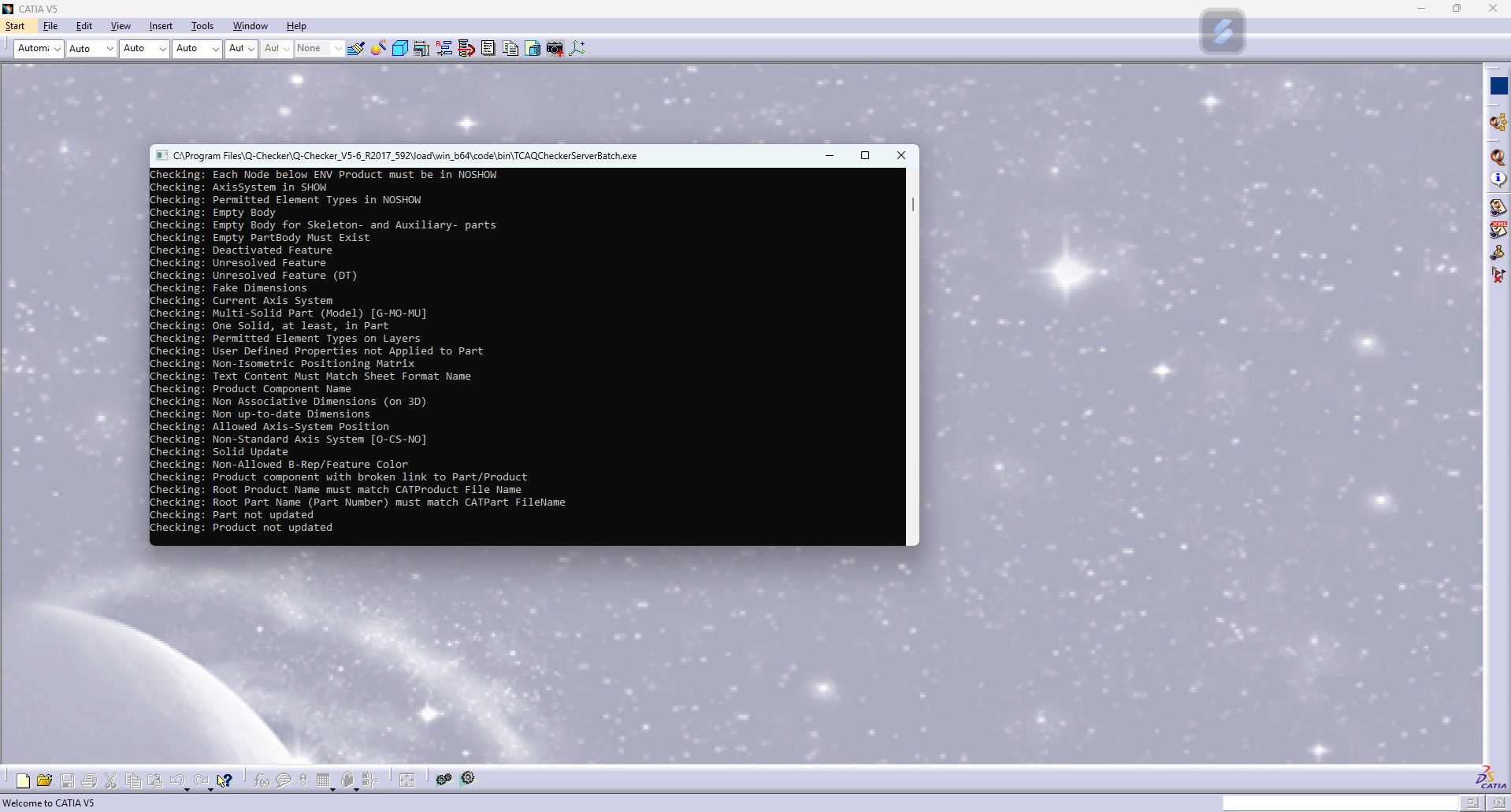

Q-Checker in Action
